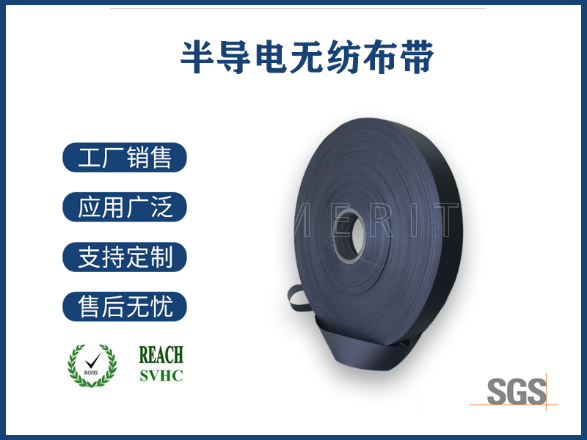

Product Description: Made of 100% polyester fiber fabric, semi-conductive adhesive impregnated dry fiber after fully carding, high longitudinal strength, low resistance.
[應用方式]: 適合用于電纜導體和絕緣線芯外，起綁扎、隔離作用，也可用于電纜金屬層下，起屏蔽作用。
Application: Suitable for cable conductors and out core of insulation wire, lashing, isolation can also be used for metal layer of cable, with shielding effect.
一、主要技術指標：
Main specification:
產品規格Specification（μm）
基重Basis weight（g/m2）
拉伸強度Tensile strength（N/cm）
伸長率Elongation（%）
表面電阻Surface resistance(Ω)
體積電阻Volume Resistance(Ω.cm)
瞬間穩定性Short-term stability（℃）
長期穩定性Long-term stability（℃）
100±20
35±10
20↑
10↑
1500↓
1*106↓
230
90
150±20
50±10
30↑
12↑
1500↓
1*106↓
230
90
200±30
75±10
43↑
12↑
1500↓
1*106↓
230
90
250±40
90±10
46↑
12↑
1500↓
1*106↓
230
90
除以上規格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers
Electrical characteristics: Little resistance, with semi-conducting characteristics, can weaken the electric field strength effectively. Not deformed easily when in external force, used for wrapping of all kinds of power cables. Good heat resistant, high temperature resistance in short-term, cable can keep stable at high temperature.
