[產品說明]: 由尼龍帶經過半導電膠浸漬烘干成型，纖維經過充分梳理，縱向強度高，電阻小。Product Description: Made of nylon tape, via semi-conductive adhesive impregnated dry and forming, fiber after fully carding, high longitudinal strength, low resistance.[應用方式]: 適合用于高壓交聯聚乙烯電纜、高壓或超

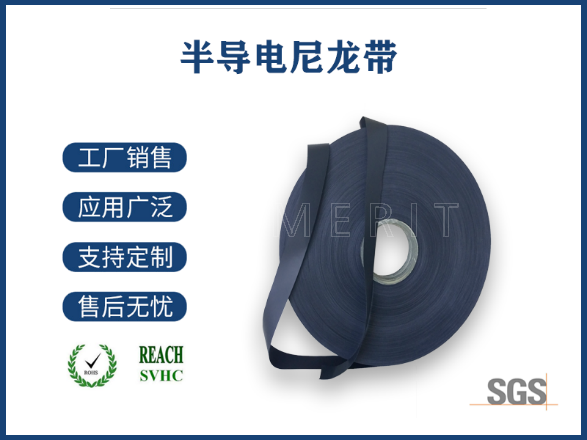

Product Description: Made of nylon tape, via semi-conductive adhesive impregnated dry and forming, fiber after fully carding, high longitudinal strength, low resistance.
Application: Suitable for wrapping and core wire for shielding and banding, such as high voltage XLPE polyethylene cables, high or extra high voltage power cable, mining cable.
一、主要技術指標：
Main specification:
產品規格Specification（μm）
基重Basis weight（g/m2）
拉伸強度Tensile strength（N/cm）
伸長率Elongation（%）
表面電阻Surface resistance(Ω)
體積電阻Volume resistance(Ω.cm)
瞬間穩定性Short-term stability（℃）
長期穩定性Long-term stability（℃）
100±20
90±10
120↑
25↑
1000↓
1*105↓
210
145
120±20
100±10
140↑
40↑
1000↓
1*105↓
210
145
140±20
110±10
150↑
40↑
1000↓
1*105↓
210
145
除以上規格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers
Electrical characteristics: Little resistance, with semi-conducting characteristics, can weaken the electric field strength effectively. Not deformed easily when in external force, used for wrapping of all kinds of power cables. Good heat resistant, high temperature resistance in short-term, cable can keep stable at high temperature.
