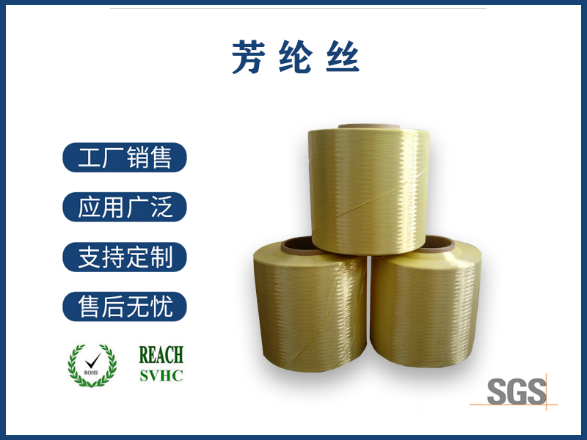

Product Description: Also called bulletproof yarn or Kevlar, is a new high-tech synthetic, has ultra-high strength, high modulus volume, resistance high temperature, acid and alkali resistant, and light weight, such as 5 ~ 6 times that of steel wire on its strength, modulus of steel wire or fiber glass 2 ~ 3 times, toughness is 2 times of wire, and weight is only about 1/5 of the steel wire, under the temperature of 560 ° C, Won't to resolve and melt. It has good insulation properties and anti-aging properties, with a long life cycle. Aramid finds, is considered to be a very important historical material processes.
[應用方式]:用于高性能電線電纜、光纖光纜、海纜等
Application: Used in high-performance wire and cable, optical cable and submarine cables etc.
一、主要技術指標:
Main specification:
產品規格Specification
斷裂強度Breaking strengthcN/dtex
密度Density(g/cm3)
熱收縮率Heat shrinkage(%)
伸長率Elongation(%)
150D
20.92↑
1.44-1.67
2.0↓
3.55
250D
20.92↑
1.44-1.67
2.0↓
3.55
300D
20.92↑
1.44-1.67
2.0↓
3.55
500D
20.92↑
1.44-1.67
2.0↓
3.55
1000D
20.92↑
1.44-1.67
2.0↓
3.55
1500D
20.92↑
1.44-1.67
2.0↓
3.55
除以上規格外,其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers
Characteristics: Anti-pulled properties is the best in all fiber, resistance high temperature, softening points is 367-370 ℃, long-term using temperature for 200 ℃ above, fireproof properties is good, not melting in the flame, has self-extinguishing, anti-cutting, heat stability when left fire, not melt in high temperature, glass of change temperature about 345 ° c; good stretch properties, general bending properties, easy formed Burr if knot: resistance general organic solvent and the salts solution, resistance strong acid and alkaline is poor; on UV sensitive when exposed in sunshine for long time, strength attenuation about 40%;
四、包裝方式:編織袋或紙箱包裝。每箱24KG.
Packaging: Woven bag or carton packaging, 24kg per bag.
